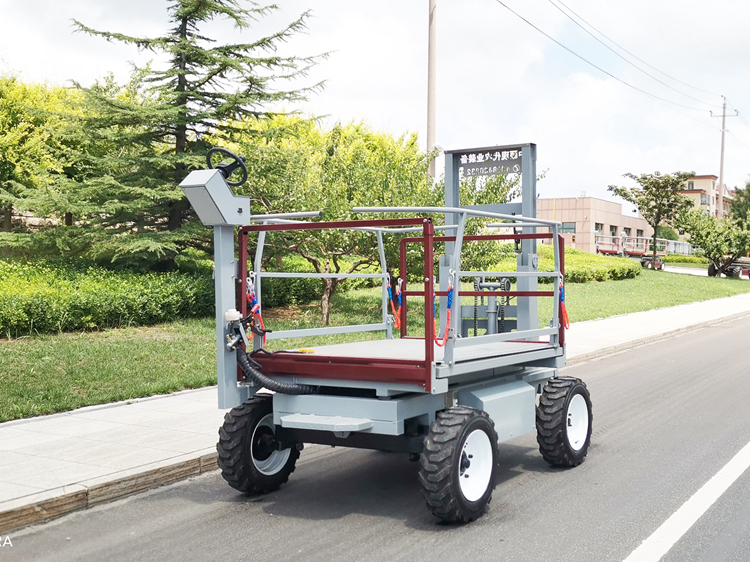

4GP-800型 經濟型 電驅動 采摘作業平臺
4GP-800 Economic Electric Driving Orchard Picking Platform
描述Description:
4GP-800 經濟型 電驅動 采摘作業平臺是中頤公司為中小規模園區用戶開發的一款緊湊型采摘作業平臺，具有采購成本低、結構緊湊可靠、轉彎半徑小、易維護等特點。
The 4GP-800 economic electric drive picking operation platform is a compact picking operation platform developed by Zoomye Company for small and medium-sized park users. It is characterized by low procurement cost, compact and reliable structure, small turning radius, easy maintenance, etc.
適合作物：蘋果、梨、櫻桃、桃子、柑橘、煙草、立體種植的蔬菜等
Suitable crops: apples, pears, cherries, peaches, oranges, tobacco, stereoscopic vegetables, etc
適合用戶群： 中小規模園區
Suitable for user groups: small and medium-sized parks
●綠色新能源 “零”噪聲污染
●Green new energy, “zero” noise pollution
●運行費用低 每天幾元電費 經濟性強
●Cheap and effective, it costs as low as a few money daily
●操控簡單易學 行走無級調速
●Easy to operate and learn Stepless speed regulation for walking
●采用“零”落差工作臺面 設計
● "Zero" drop worktable design
●采用傾角可調護欄結構
● Adopt adjustable angle guardrail structure
●采用名牌電器件 電控系統可靠耐用
●Brand electrical components are used, ensures reliable and durable electrical control system
●采用商用車輛高標準線束
● High standard harness of commercial vehicles
●采用大容量名牌動力蓄電池 使用壽命長
●High capacity brand battery is used, ensures a long service life
●采用名牌液壓部件 保證液壓系統的穩定性可靠性
●Brand hydraulic components are used, ensure the stability and reliability of hydraulic system
●整機結構件激光切割成型 精度極高
●Complete machine structure is formed by laser cutting with high precision
●全系標配 加寬越野輪胎
●Standard widened off-road tire are equipped as a standard for the whole series
●采用抗紫外線耐候油漆涂層
●UV resistant and weather resistant paint coating
●行走系統帶有動能回收功能
● The traveling system has the function of kinetic energy recovery
●一次充電可持續工作8-32小時
●8 to 32 hours of continuous operation on a single charge
4GP-800 果園采摘作業平臺 產品規格表
Product Specification Table of 4GP-800 Orchard Picking Platform
序號 Serial No. | 項 目 Item | 單位 Unit | 主要參數 Main Parameter |
1 | 型號名稱Model Name | / | 4GP-800型果園采摘作業平臺 4GP-800 series orchard picking platform |
2 | 結構型式Structural Style | / | 自走式Self-propelled type |
3 | 驅動型式Driving Type | / | 2輪 驅動 2WD |
4 | 升降機構類型 Type of lifting mechanism | / | 液壓導軌立柱式 Hydraulic guide column type |
5 | 轉向型式Steering type | / | 液壓動力轉向（方向盤） Hydraulic power steering (steering wheel) |
6 | 配套動力型式 Type of support power | / | 電動機 Electric motor |
7 | 配套動力Supporting power | kW | 6 |
8 | 整機外形尺寸（長×寬×高） Maximum Overall dimension(L*W*H) | mm | 2830×1750×2530 |
9 | 工作臺最大尺寸（長×寬） Maximum dimension of work platform(L*W) | mm | 1820×3000 |
10 | 額定載荷Rated load | kg | 800 |
11 | 舉升負載量Lifting Load | kg | 700 |
12 | 升降高度范圍 Lifting height range | mm | 950～1780 |
13 | 最小離地間隙 Minimum ground clearance | mm | 210 |
14 | 輪胎型號（前輪/后輪） Tire type(Front/Rear) | / | 27×8.5-15/27×8.5-15 |
15 | 爬坡能力Climbing ability | % | 20 |
16 | 輪距Wheel tread | mm | 1530 |
17 | 工作臺橫向最大調平角度 Maximum horizontal leveling angle of work platform | ° | / |
18 | 工作臺縱向最大調平角度 Maximum longitudinal leveling angle of work platform | ° | / |
19 | 平臺升降速度 Platform rising & falling speed | mm/s | 額定負載升速：60；空載升速：75 額定負載降速：130；空載降速：120 Rated load speed rise: 60; No load speed rise: 75 Rated load deceleration: 130; No load deceleration: 120 |
20 | 最大沉降量Maximum subsidence | mm | 8 |
21 | 行走速度范圍 Travel speed range | m/s | 0～1.88 |
22 | 轉彎半徑Turning radius | m | 3.7 |
800基本型三電配置： 鉛酸動力蓄電池+直流無刷電機+直流電控
800 basic three electricity configuration: lead-acid power battery +DC brushless motor +DC electric control
※選裝配置Optional:
A 增程發電機 A Extended range generator
B 電子制動 B Electronic brake
C MP3 播放器 C MP3 player
D 夜間工作燈 D Night work light
E 遮陽蓬 E Sunshade
F 太陽能輔助發電系統 F Solar auxiliary power generation system
G 后舉升叉系統 G Rear lifting fork system
H 免維護動力蓄電池 H Maintenance free traction battery
I 護欄置物袋 I Guardrail storage bag
J 折疊座椅 J Folding seats
K 220V AC 交流輸出 K 220V AC output
*參數表僅描述了基本型參數，選裝配置參數請咨詢中頤公司。
*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.
*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。 咨詢電話 4008-400-232
*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
